Double Sided Faxing: Test Two Pages First

Yes, you can send and receive double-sided faxes, but the capability lives in your hardware and settings, not in the fax transmission itself. The sender’s scanner needs to capture both sides of each page before dialing, and the receiver’s printer needs duplex printing turned on to produce two-sided paper copies. Without both pieces in place, a fax stays single-sided no matter how the document started.

TL;DR:

For sending, enable two-sided scan or Duplex TX, select long edge or short edge orientation, and check whether your machine requires Memory Transmission.

A wrong edge choice may still transmit successfully, but it can leave alternating pages upside down or out of order; test with two pages first.

Duplex reception requires an internal duplex unit, enabled receiver settings, memory reception, matching paper size, and uniform page widths throughout the fax.

Without a duplex feeder, send fronts and backs in separate passes, preserving matching order; a brief trial can catch sequence errors before a full job.

For legal filings and official forms, a flipped page may force resubmission; assembling both sides in one PDF preserves order and avoids device limits.

How duplex fax transmission actually works

Fax protocols like ITU-T Recommendation T.30 move documents as a sequence of discrete pages. There is no built-in “double-sided” flag in the transmission itself; duplexing happens because a device scans both sides of a sheet and feeds them into that page sequence before the call even starts. That distinction explains most of the confusion around double-sided faxing.

A few technical points matter here:

Fax terminals negotiate capabilities during call setup, but double-sided behavior is created by the scanning step, not the negotiation.
Some duplex send modes only work with Memory Transmission, meaning the machine scans and stores every page before dialing, rather than streaming pages as it scans.
Devices separate the two directions with different labels: 2-Sided TX (or Duplex Scan) controls what you send, while Duplex Print (RX), sometimes called 2-Sided Print, controls what the recipient’s printer does with what it receives.

Knowing which side of this equation you’re adjusting saves a lot of menu-hunting.

How to send a double-sided fax from an ADF

Sending a two-sided fax from an Automatic Document Feeder follows a fairly consistent pattern across brands, even though menu wording differs. Brother’s support documentation outlines a typical workflow that looks like this:

Put the machine into Fax mode and load your originals into the ADF with the top edge going in first, then confirm the display shows “ADF Ready.”
Open the send settings and enable 2-Sided Scan, 2-Sided TX, or Duplex, depending on your model’s wording.
Choose long-edge or short-edge orientation based on how the pages will flip, since picking the wrong one scrambles page order at the other end.
Check that your document’s width and length fall within the ADF’s stated limits, and confirm whether your device requires Memory Transmission for duplex jobs; many do.
Dial the number and press Start, then watch the display for scanning progress or error indicators. If something looks wrong, canceling before the dial completes is safer than letting a missed job transmit.

Pro Tip: Run a two-page test fax to yourself or a second line before sending a long duplex document, so you catch orientation mistakes early instead of after a 20-page job.

Some devices will reject the job outright if a page exceeds ADF size limits, so checking paper dimensions before loading saves a reprint.

Choosing the right orientation: long-edge vs. short-edge

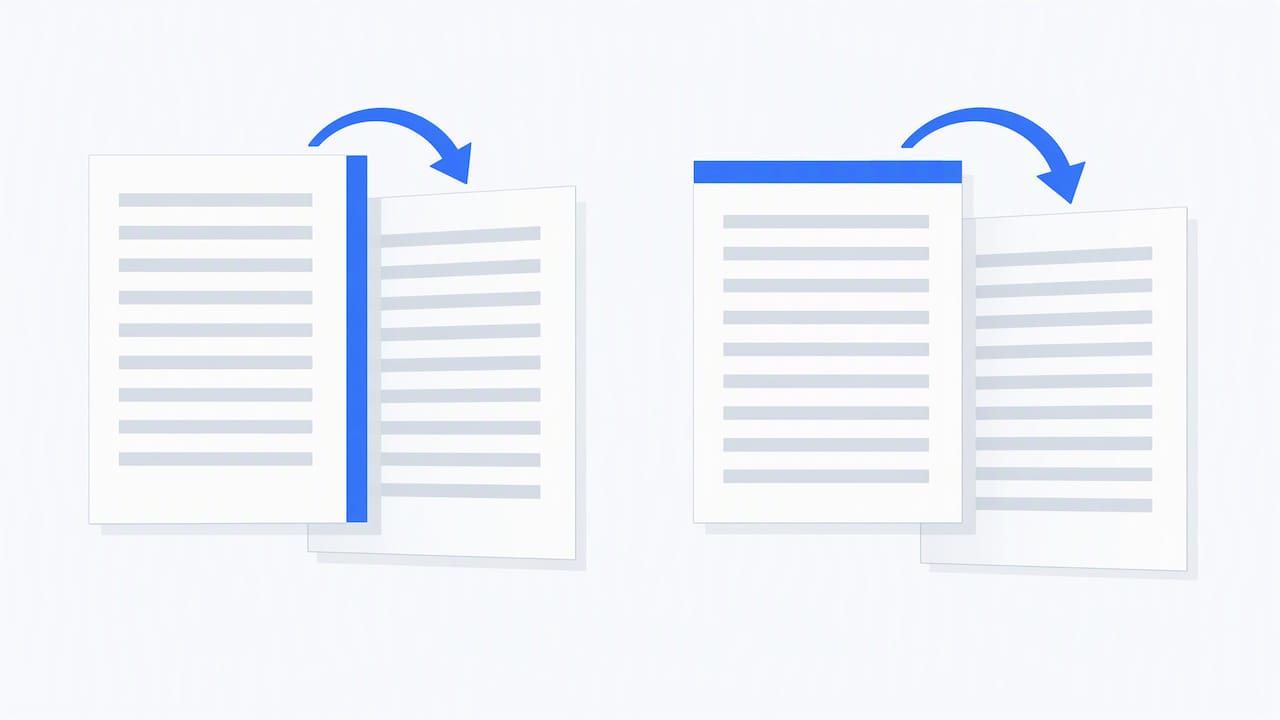

Two sheet pairs show alternate flip edges

Picking the correct scan orientation is where most duplex faxes go wrong, because it determines whether pages read correctly once printed on the other end. Long-edge orientation works like a bound book, where you flip pages along the long side. Short-edge orientation works like a flip calendar, turning along the short side instead.

A few practical notes:

Menu paths typically sit under something like Send Settings, then 2-Sided Scan or TX Mode, where you select the edge type.
Choosing the wrong edge orientation doesn’t stop the fax from sending, but it flips every other page upside down or out of sequence on the receiving end.
Some devices offer a “2-Sided from 1st page” option, which tells the scanner whether the very first sheet in the stack already has content on both sides or whether duplexing starts later in the stack.

If your document was printed on a typical office printer, long-edge is usually the safer default since most duplex printers also default to that binding style. When in doubt, a quick two-page test resolves the question faster than reading through a manual.

Getting a received fax to print on both sides

Printing an incoming fax on both sides depends entirely on the receiver’s hardware and settings; the sender has no control over this part. Ricoh’s user guide for two-sided printing explains that Duplex Print (RX) requires an internal duplex unit plus an administrator-enabled setting, and it only works correctly when every page in the fax is the same width.

Before you can count on duplex reception, check for these prerequisites:

The incoming document must have uniform page width throughout, since mixed sizes typically disable duplex printing automatically.
The fax needs to come in through memory reception rather than real-time printing, which most modern multifunction devices handle by default.
Paper loaded in the tray needs to match the sender’s page size, and the 2-Sided Print (or Duplex Print) option needs to be switched on in the device menu.

Pro Tip: If a received duplex fax prints in the wrong page order, check whether the device’s binding direction setting matches the sender’s long-edge or short-edge choice before assuming a hardware fault.

Manual duplex workarounds without a duplex ADF

Not every fax machine has an automatic duplex feeder, but you can still produce a double-sided fax with a two-pass manual process.

Scan or fax the front sides of all pages first, keeping them in order, then reload the same stack reversed and scan the back sides in the matching sequence.
Label each sheet lightly in pencil if you’re worried about losing track of order, since a single misplaced page undoes the whole set.
Alternatively, use your copier’s manual duplex function or a browser-based tool like FlowPDF’s scan-to-PDF feature to assemble both sides into one multi-page PDF, which you can then send as a single file rather than juggling two fax passes.
Test the process with a two-page sample before committing a full document, so an ordering mistake costs you two pages instead of twenty.

This approach takes longer than automatic duplexing, but it works on virtually any machine, old or new.

Common limitations and quick troubleshooting

Duplex faxing fails for a handful of predictable reasons, and most have a fast fix. Start with a basic checklist: confirm you have a dial tone, check that the ADF shows “Ready,” verify your paper size matches the device’s supported range, confirm the 2-Sided setting is actually turned on, and make sure there’s enough memory available if your device requires Memory Transmission for duplex jobs. Ricoh’s documentation on two-sided transmission notes that combining legal-size or mixed-size originals in one job often blocks duplex scanning entirely, which explains why a duplex option sometimes grays out mid-job.

No dial tone usually points to a phone line issue rather than a fax setting; our guide to fixing busy fax lines covers common causes.
Wrong orientation at the receiver is almost always a long-edge versus short-edge mismatch, fixable by re-selecting the correct option and resending a test page.
An “ADF not detected” error often means a page is misaligned or exceeds the feeder’s supported width.

Fax over IP connections add another layer of risk, since even modest packet loss can disrupt transmission reliability on duplex jobs that depend on Memory Transmission; California Telecom’s breakdown of fax-over-IP packet loss issues covers this in more technical detail.

When duplex faxing makes sense and when it doesn’t

Duplex faxing saves paper and suits routine office documents where page order rarely causes problems. It gets riskier with legal filings, IRS forms, or anything official, where a single flipped page can mean resubmitting the entire document. For those cases, scanning both sides into one PDF and uploading it through an online fax service avoids hardware limitations entirely and keeps page order exactly as you assembled it.

— Engin

Sending multi-page faxes without fighting hardware settings

We built our online fax service around the idea that you shouldn’t need to troubleshoot an ADF or hunt through printer menus just to send a two-sided document. Scan both sides of your pages into a single PDF using a tool like our free PDF faxifier, then upload the file and we handle the rest.

No account creation or subscription is required — pricing is a flat rate per page sent, and every fax includes automatic retries, delivery confirmation, and a refund if it fails to go through. Send your fax online now and skip the hardware altogether.

No account or subscription required to send a fax.
$0.50 per page, billed only for completed transmissions.
Automatic retries and delivery confirmation on every fax sent.
A refund if your fax fails to deliver.

FAQ

How does fax even work?

A fax machine scans a document into an image, then transmits it page by page over a phone line or internet connection using protocols like ITU-T T.30. The receiving device reconstructs each page and prints it, with the protocol itself handling negotiation and page sequencing rather than formatting choices like duplexing.

Do libraries offer fax services?

Many public libraries offer fax sending and receiving as a paid or low-cost service at the front desk, though availability and pricing vary by location and are not standardized nationally. Checking with your local branch directly is the most reliable way to confirm hours and cost.

How do I send a fax online?

You scan or upload your document as a PDF or image file to an online fax service, enter the recipient’s fax number, and submit the transmission, often without needing a traditional fax machine or phone line. Services like our online fax platform charge per page sent and provide delivery confirmation once the transmission completes.

How do I send a two-sided fax?

Load your originals into the ADF, enable the 2-Sided Scan or Duplex TX setting, choose long-edge or short-edge orientation to match how the pages flip, then dial and start the transmission as usual. If your machine lacks automatic duplex scanning, you can manually scan both sides in two passes or combine them into one PDF before sending.
